higher rolling efficiency with inner rings remained onto the rolls during processing;
stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
![]() |

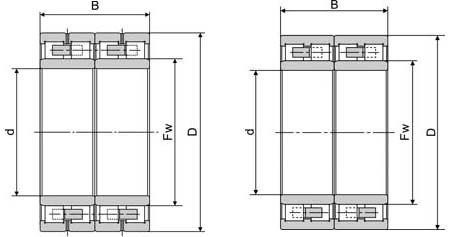

Boundary Dimensions | d | 330 | mm | |||
| D | 460 | mm | |||||
| B | 340 | mm | |||||
| Fw | 365 | mm | |||||
| Basic Load Ratings | Cr | 3190 | kN | ||||
| C0r | 9820 | kN | |||||
| Speed Ratings | Grease | 800 | rpm | ||||
| Oil | 1000 | rpm | |||||
| Weight | 174 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 313445 C | 543447 | ||||||
working under the toughest working environment;
higher working performance and low cost to help the steel mills reduce their rolling mill cost;
