four-row cylindrical roller bearings for steel industry
working under the toughest working environment
able to work under high temperature, water, particles
one-stop rolling mill solution to reduce rolling mill’s cost
OEM service
 |

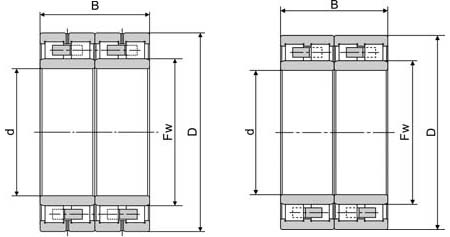

Boundary Dimensions | d | 360 | mm | |||
| D | 510 | mm | |||||
| B | 380 | mm | |||||
| Fw | 399 | mm | |||||
| Basic Load Ratings | Cr | 4020 | kN | ||||
| C0r | 12070 | kN | |||||
| Speed Ratings | Grease | 700 | rpm | ||||
| Oil | 900 | rpm | |||||
| Weight | 247 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 316890B | |||||||
inner rings are separable from the outer rings, convenient for assembling;
stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
