popular for use on roll necks;
particularly suitable for high speed rolling mills;
carrying high capacity;
![]() |

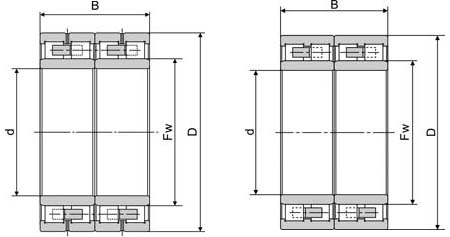

Boundary Dimensions | d | 280 | mm | |||
| D | 380 | mm | |||||
| B | 290 | mm | |||||
| Fw | 308 | mm | |||||
| Basic Load Ratings | Cr | 2046 | kN | ||||
| C0r | 6440 | kN | |||||
| Speed Ratings | Grease | 1000 | rpm | ||||
| Oil | 1300 | rpm | |||||
| Weight | 100 | Kg | |||||
inner rings are separable from the outer rings, convenient for assembling;
stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
