carrying large load rating capacity;
automatically corrected to reduce excessive force to bearings;
![]() |

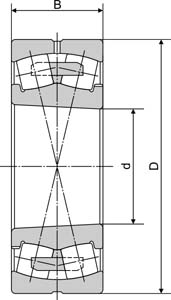

Boundary Dimensions | d | 400 | mm | |||
| D | 650 | mm | |||||
| B | 200 | mm | |||||
| Basic Load Ratings | Cr | 2690 | kN | ||||
| C0r | 6200 | kN | |||||
| Speed Ratings | Grease | 380 | rpm | ||||
| Oil | 480 | rpm | |||||
| Weight | 256.00 | Kg | |||||
tow rows of barrel-shape rollers in the inner rings, with outer ring having one spherical raceway;
suitable for applications with vibration and impact loads;
