inner ring raceways inclined at an angle to the bearing axis;
sphered outer ring;
![]() |

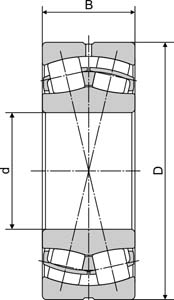

Boundary Dimensions | d | 180 | mm | |||
| D | 280 | mm | |||||
| B | 100 | mm | |||||
| Basic Load Ratings | Cr | 755 | kN | ||||
| C0r | 1510 | kN | |||||
| Speed Ratings | Grease | 950 | rpm | ||||
| Oil | 1300 | rpm | |||||
| Weight | 22.4 | Kg | |||||
self-aligning;
insensitive to misalignment of the shaft relative to the housing;
