inner ring raceways inclined at an angle to the bearing axis;

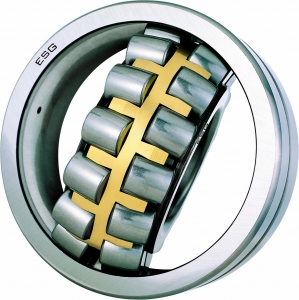

sphered outer ring;
![]() |
Boundary Dimensions | d | 340 | mm | |||
| D | 520 | mm | |||||
| B | 180 | mm | |||||
| Basic Load Ratings | Cr | 2930 | kN | ||||
| C0r | 6350 | kN | |||||
| Speed Ratings | Grease | 530 | rpm | ||||
| Oil | 670 | rpm | |||||
| Weight | 143 | Kg | |||||
self-aligning;
insensitive to misalignment of the shaft relative to the housing;
