Product Type: Double-Row Tapered Roller Bearing
1. Overview
Developed for heavy-duty industry, double-row tapered roller bearings have high strength, great rigidity and stable running performance. With excellent comprehensive load capacity, they fit complex combined load environments perfectly, being core supporting parts for metallurgy, mining and heavy machinery.

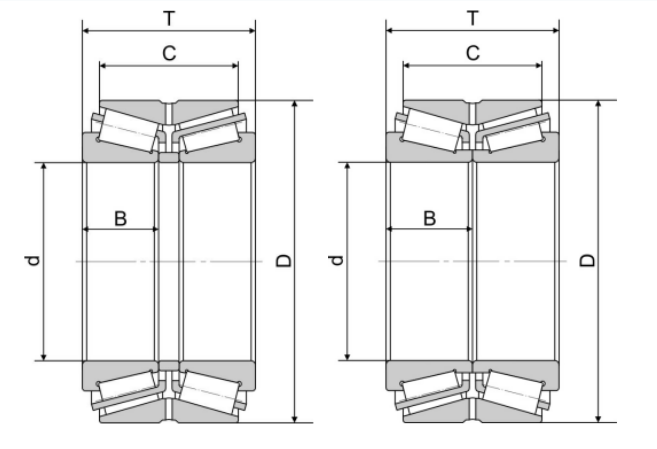

2. Basic Dimensions
Dimension Type
|
Value
|
Inner Diameter (d)
|
200mm
|
Outer Diameter (D)
|
280mm
|
Thickness (B)
|
48.5mm
|
3. Structural Features
Component Composition: It is assembled with two groups of tapered rollers, double-row raceway inner ring, integral outer ring and high-precision rigid cage, with compact structure and high integration for heavy industrial use.
Clearance Adjustment: The adjustable internal clearance structure supports accurate preload and clearance adjustment to adapt to harsh heavy-load operating conditions.
Load-Bearing Advantage: Symmetrical double-row structure greatly enhances overall rigidity, suitable for bearing heavy radial loads and bidirectional axial loads synchronously with evenly distributed internal stress.
4. Load-Carrying Capacity
Radial Load Capacity: Its radial load resistance is vastly improved relative to single-row tapered roller bearings, well suited for extended heavy-load industrial operation.
Load Type Adaptability: The structural design caters to mixed load environments dominated by radial forces and supplemented by two-way axial forces, delivering stable endurance against persistent heavy loads, alternating dynamic loads and mechanical shock forces.
5. Performance Characteristics
Limiting Speed: Utilizing rationally constructed tapered roller contact surfaces and well-matched friction pairs, the bearing runs smoothly under medium-low speed heavy-load working status, boasting quiet operation and low friction power loss.
Axial Load Capacity: Single-row tapered roller bearings are restricted to one-way axial force bearing, yet the symmetric double-row structure delivers reliable endurance against two-way axial thrust. It locks shaft assemblies in precise axial positions and offsets axial displacement and machine vibration during operation.
Operational Stability: Enhanced roller placement and tight raceway fit reduce running deviation and wear levels effectively, meeting the demand for long-term stable continuous operation under harsh industrial circumstances.
6. Material & Manufacturing
Inner & Outer Rings: Fabricated using high-purity bearing steel, the rings come with elevated hardness and powerful protection against deformation under heavy loads.
Rolling Elements: Precisely shaped tapered rollers balance internal stress effectively and maintain excellent resistance to surface abrasion.
Cage: High-rigidity heavy-duty cage structure avoids roller dislocation and mutual impact friction during running.
Heat Treatment: The integral quenching and tempering procedure improves surface hardness and anti-fatigue property, prolonging service life for uninterrupted long-term industrial service.
7. Application Fields
Primary Application: Widely deployed as supporting bearings for roll necks, transmission assemblies and auxiliary bearing seats of steel rolling mills and metallurgical machinery.
Other Applications: Perfectly fit all heavy-duty mechanical units requiring high rigidity and bidirectional load capacity, including mining equipment, construction machinery, heavy-duty gearboxes and industrial drive systems.
