specially designed for steel industry;
popular for use on roll necks;
allowing greater radial load;
![]() |

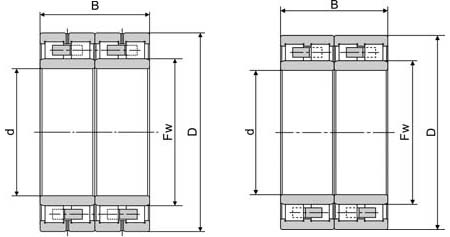

Boundary Dimensions | d | 340 | mm | |||
| D | 450 | mm | |||||
| B | 250 | mm | |||||
| Fw | 369 | mm | |||||
| Basic Load Ratings | Cr | 2130 | kN | ||||
| C0r | 6460 | kN | |||||
| Speed Ratings | Grease | 800 | rpm | ||||
| Oil | 1000 | rpm | |||||
| Weight | 106 | Kg | |||||
radial clearance is generally executed in C3 or C4;
higher rolling efficiency with inner rings remained onto the rolls during processing;
