working under the toughest working environment;
radial clearance is generally executed in C3 or C4;
![]() |

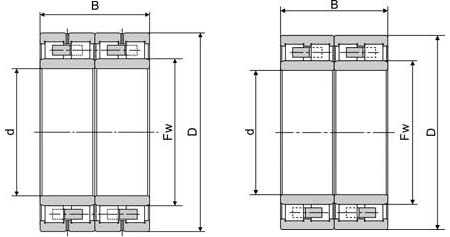

Boundary Dimensions | d | 340 | mm | |||
| D | 460 | mm | |||||
| B | 260 | mm | |||||
| Fw | 370 | mm | |||||
| Basic Load Ratings | Cr | 2340 | kN | ||||
| C0r | 6960 | kN | |||||
| Speed Ratings | Grease | 800 | rpm | ||||
| Oil | 1000 | rpm | |||||
| Weight | 122 | Kg | |||||
stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
