stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
radial clearance is generally executed in C3 or C4;
![]() |

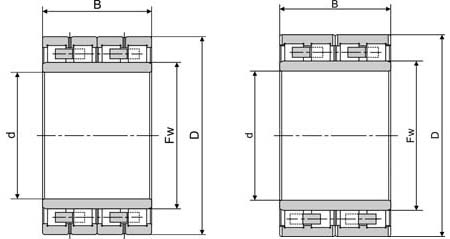

Boundary Dimensions | d | 420 | mm | |||
| D | 560 | mm | |||||
| B | 280 | mm | |||||
| Fw | 457 | mm | |||||
| Basic Load Ratings | Cr | 3150 | kN | ||||
| C0r | 8750 | kN | |||||
| Speed Ratings | Grease | 620 | rpm | ||||
| Oil | 780 | rpm | |||||
| Weight | 189 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 420RV5601 | 4R8403 | 84FC56280 | |||||
able to work under high temperature, water, particles;
effective in operation;
