stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
radial clearance is generally executed in C3 or C4;
![]() |

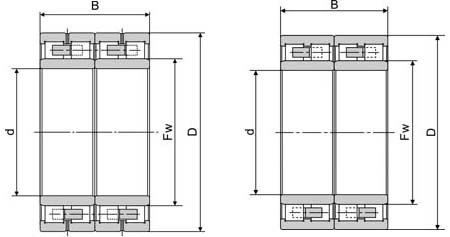

Boundary Dimensions | d | 320 | mm | |||
| D | 480 | mm | |||||
| B | 350 | mm | |||||
| Fw | 364 | mm | |||||
| Basic Load Ratings | Cr | 3210 | kN | ||||
| C0r | 9140 | kN | |||||
| Speed Ratings | Grease | 800 | rpm | ||||
| Oil | 1000 | rpm | |||||
| Weight | 228 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 314274 B | 541851 | 320RV4811 | 314274A | ||||
able to work under high temperature, water, particles;
large stock for better delivery;
