higher rolling efficiency with inner rings remained onto the rolls during processing;
radial clearance is generally executed in C3 or C4;
![]() |

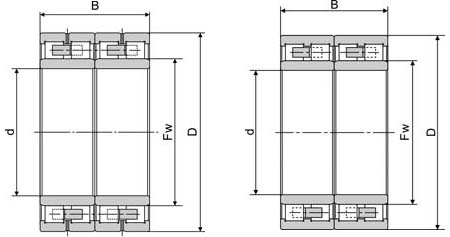

Boundary Dimensions | d | 360 | mm | |||
| D | 520 | mm | |||||
| B | 380 | mm | |||||
| Fw | 405 | mm | |||||
| Basic Load Ratings | Cr | 4120 | kN | ||||
| C0r | 12520 | kN | |||||
| Speed Ratings | Grease | 700 | rpm | ||||
| Oil | 900 | rpm | |||||
| Weight | 271 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 562913 | 72FC52380 | ||||||
carrying high capacity;
particularly suitable for high speed rolling mills;
able to work under high temperature, water, particles;
